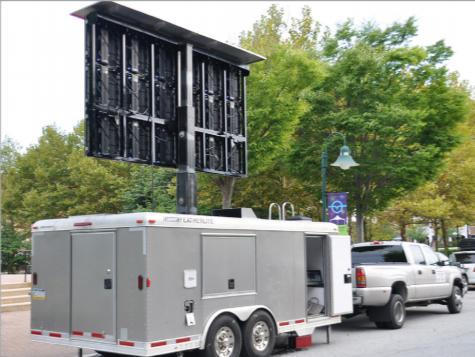

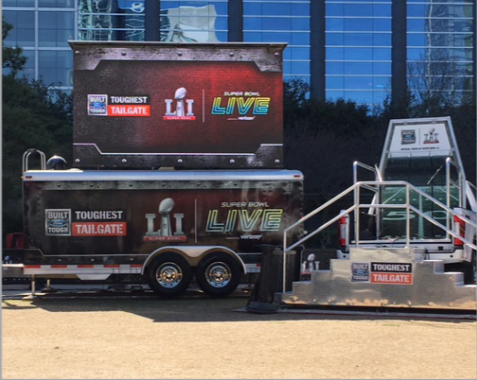

DIMENSIONS: 16' long (20' long with tongue). 8' wide, 7.8' high

SCREEN DIMENSIONS: 8’ x 13’

WEIGHT: 6700 lbs. (3048 kg)

PIXEL RESOLUTION: 270 high x 480 wide

ASPECT RATIO: 16:9

SCREEN ROTATION: 360°, manual

SCREEN HEIGHT (RAISED POSITION): Bottom of screen can raise to 10' (3.05m)

ONBOARD POWER: Self-contained with a generator (68 DBs at 23')

SHORE POWER REQUIREMENTS: 208 VAC Single Phase 50 AMP service series 16 camlock (2 Hot, 1 Neutral, 1 Ground)

VIDEO SOURCE INPUTS: HD-SDI, DVI, HDMI

OPTIONAL: Loudspeaker & microphone package (available upon request)

DIMENSIONS WITH OUTRIGGERS EXTENDED: 11.2' wide x 20' long

DIMENSIONS WITHOUT OUTRIGGERS 8.5' wide x 20' long

DECK HEIGHT: 39''

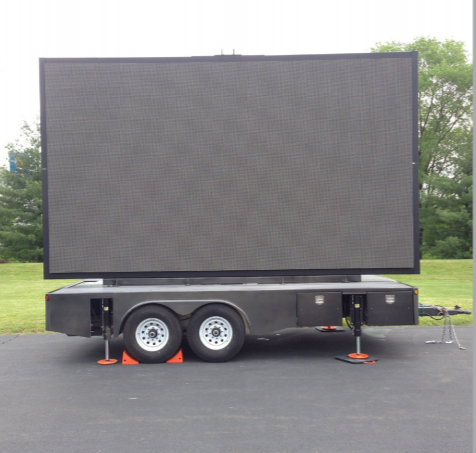

SCREEN DIMENSIONS: 11'x18' with a 4'' black border on all sides

WEIGHT: 11,650 lbs. (5284.32 kg)

PIXEL RESOLUTION: 480 high x 920 wide

ASPECT RATIO: 16:9

SCREEN ROTATION: 360°

SCREEN HEIGHT (DOWN POSITION): 42''

SCREEN HEIGHT (RAISED POSITION): Bottom of screen can raise to 13' 6'' (4.11 m)

PARADE MODE: Dual-sided, can operate while moving

ONBOARD POWER: Onboard feeder cable (available upon request)

SHORE POWER REQUIREMENTS: 40A 208V 3-phase cam lock connections (ground and neutral are not reversed)

VIDEO SOURCE INPUTS: HD-SDI, DVI, HDMI

OPTIONAL: Playback speakers and amplification (available upon request)

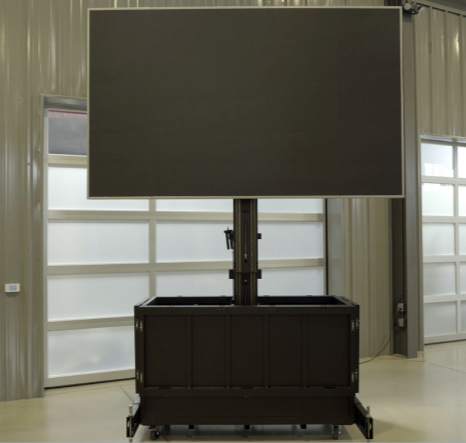

BOX DIMENSIONS: 66'' W (71'' with foot holes) x 27 1/2'' D x 71'' H

SCREEN UP DIMENSIONS: 5'-10.5''(W) x 2'-9.5''(D) (5'- 1.25'' (D) with outriggers) x 11' (H)

SCREEN DIMENSIONS: 5' x 8'

WEIGHT: 822 lbs. (372.9 kg)

PIXEL RESOLUTION: 960 wide x 576 high

ASPECT RATIO 1:66:1

SCREEN/LIFT POWER: (1) 120V 20A Circuit

AUDIO/VIDEO INPUTS: HDMI, Onboard BrightSign Media Player, SDI (available upon request)

OPTIONAL: Playback audio and camera options (available upon request)

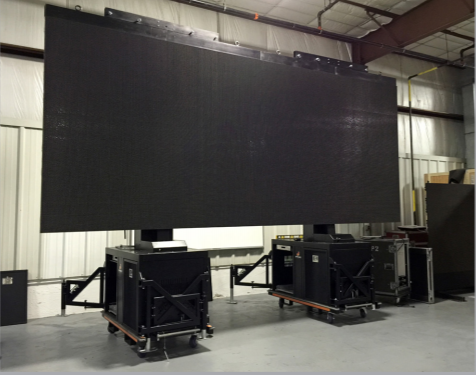

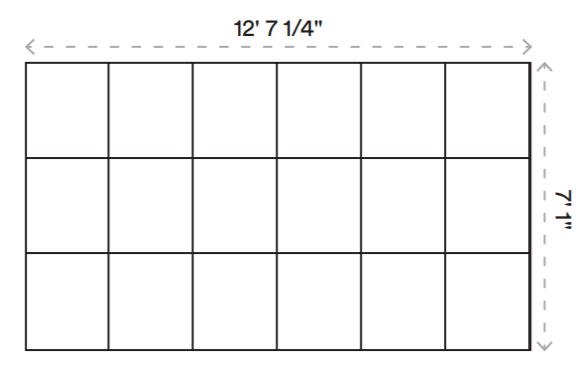

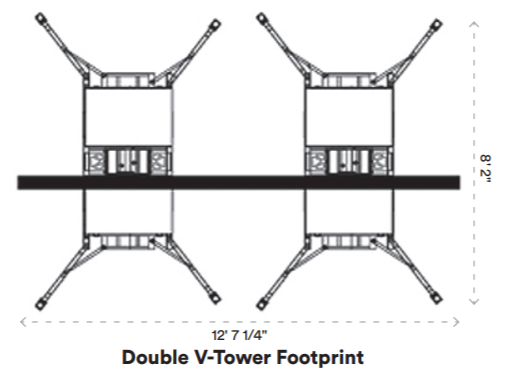

DIMENSIONS: 8' x 13' 6mm LED Screen on 2 Towers

WEIGHT: Screen: 550 lbs., V Towers: 2,200 lbs.

SCREEN RESOLUTION: 324 x 576

ASPECT RATIO: 16:9

INPUT: Bottom of screen can raise to 14.3' (4.35 m)

PARADE MODE: HD-SDI, DVI, HDMI

POWER REQUIREMENTS: 3 x 110V Edison circuits OR 30 amps of 208V 3 phase on series 16 cam locks

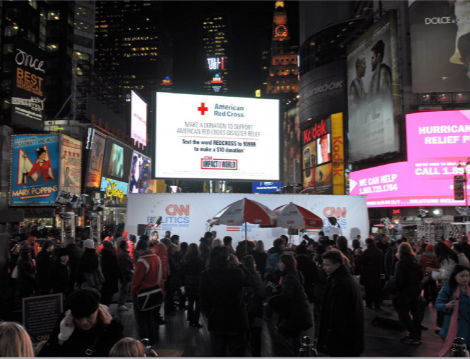

DIMENSIONS WITH OUTRIGGERS EXTENDED: 49’ wide x 20’ long

SCREEN DIMENSIONS: 27.5’ x 18.1’

PIXEL RESOLUTION: 528 high x 816 wide

SCREEN ROTATION: 360°

SCREEN HEIGHT (DOWN POSITION): Screen can operate in the down position on the deck. Deck trim is 42” off ground

SCREEN HEIGHT (RAISED POSITION): When screen is in the raised position, the bottom of the screen can trim to 17’

CONTROL ROOM DIMENSIONS: 14’ x 18.5’ (Fits 3 people)

ONBOARD POWER: Self-contained with a 70Kw generator

ONBOARD FEEDER CABLE: 50’, 5-wire camlock 2Awt series, 16 camlock

SHORE POWER REQUIREMENTS: 208V 3-phase, 5-wire series 16 camlock (100 Amp service)

AUDIO/VIDEO INPUTS: HD-SDI, DVI, HDMI

OPTIONAL: Playback audio & camera options (available upon request)

SCREEN SPECS (DIMENSIONS ; RESOLUTION ; BRIGHTNESS ; IP RATINGS)

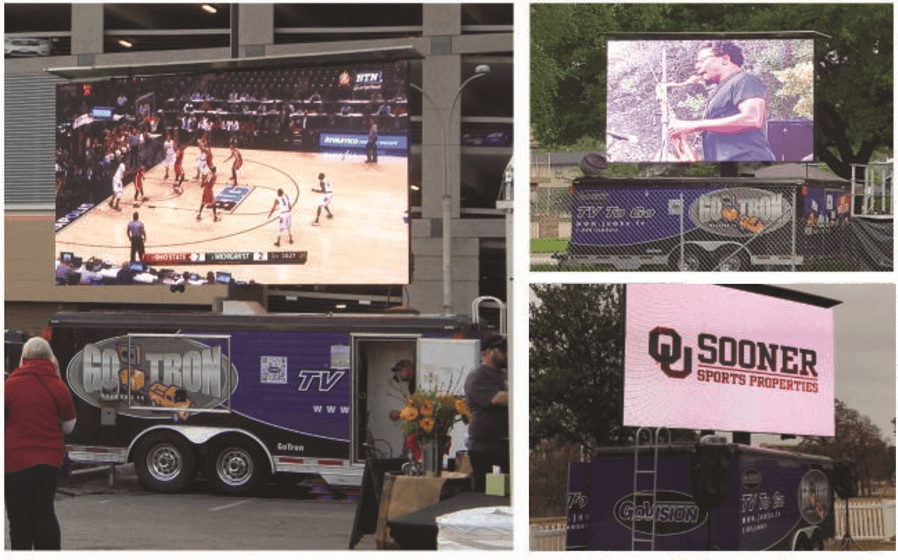

- G4: 9’ x 16’ ; 10mm SMD ; 5000 Nits ; IP 65 Certified

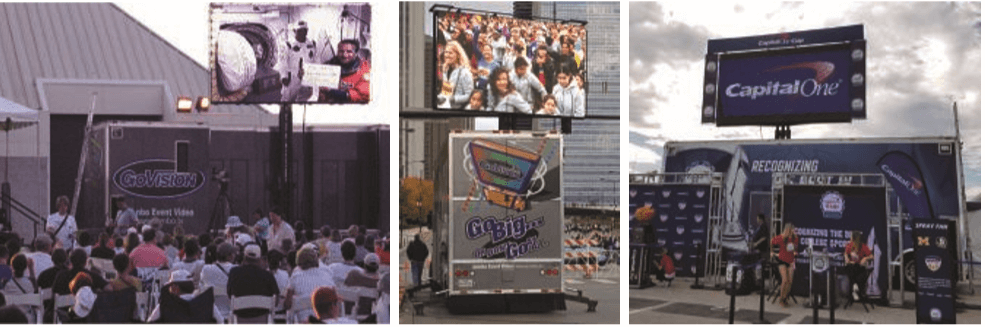

- G6: 9’ x 16’ ; 10mm ; 5000 Nits ; IP 65 Certified
- G8: 11’ x 19’ ; 10mm Physical ; 5000 Nits ; IP 67 Certified

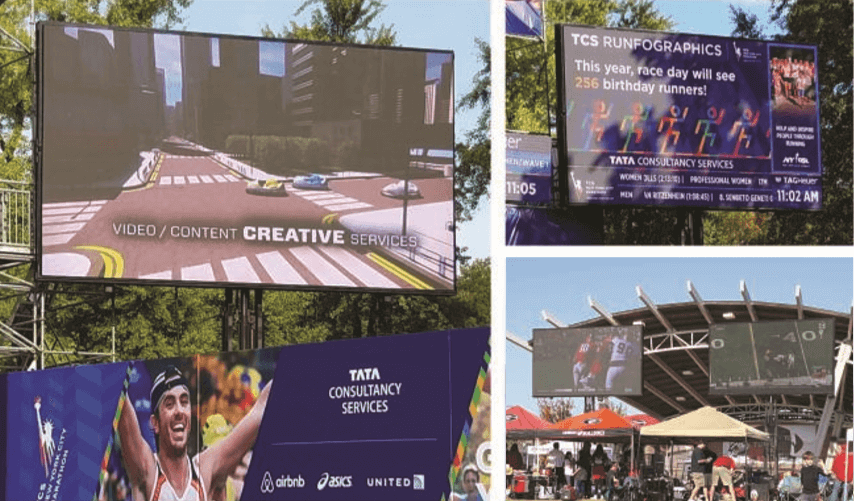

- G10: 14’ x 24’ ; 10mm Physical ; 5000 Nits ; IP 67 Certified

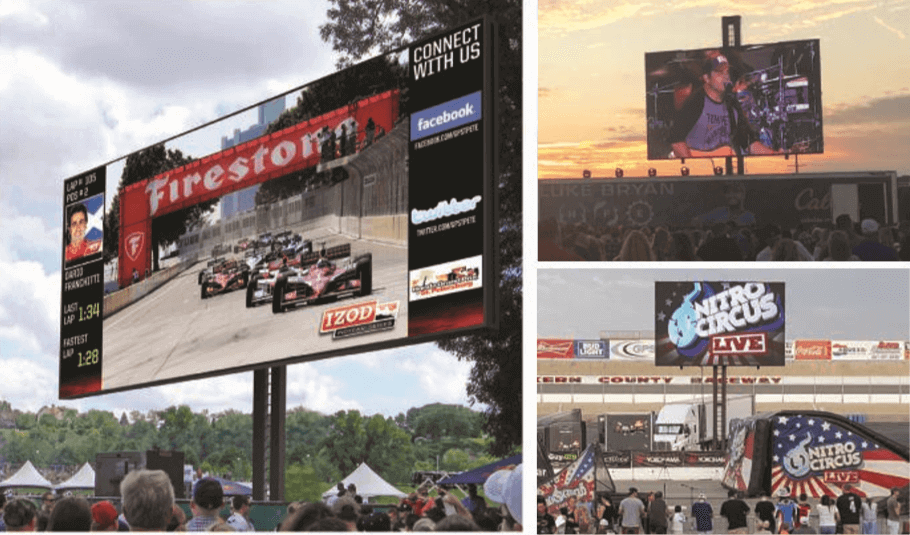

- G12: 17’ x 27’ ; 10mm Physical ; 5500 Nits ; IP 67 Certified

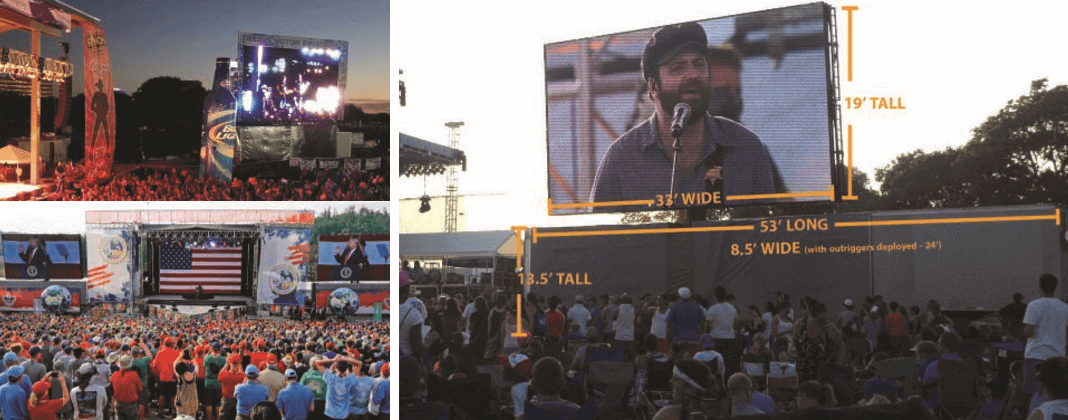

- G16: 19’ x 33’ ; 16mm HD ; 7500 Nits ; IP 65 Certified

TRAILER/TRUCK SPECS:

- G4 Trailer: 16’ (L) x 8‘ (W) x 8’ (H)
- G6 Truck: 40’ (L) x 15’ (W) x 13.5’ (H)
- G8 Trailer: 28’ (L) x 8’6’’ (W)
- G10 Trailer: 28’ (L) x 8’6’’ (W)
- G12 Trailer: 48’ (L) x 8’6’’ (W)
- G16 Truck: 53’ (L) x 24’ (W) x 13.5’ (H)

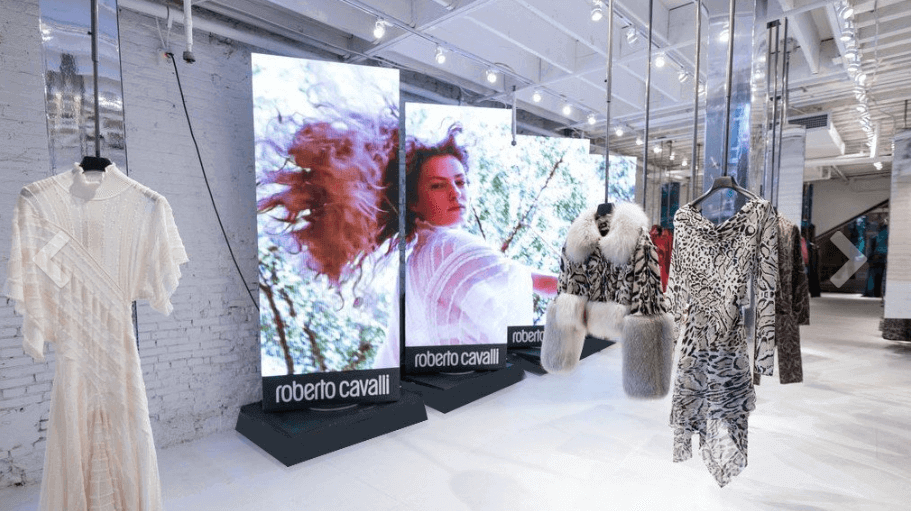

• Goes Where You Need It – Available in both indoor and outdoor models

• Different Configurations and Sizes – Panels can be strung together to form a long canvas and folded to reduce the height

• Ease of Use – Set-up or tear down in 30 minutes or less

• Vivid Content – Real-time content changes and ability to input live video feeds.

• Total Control – Controlled remotely by any handheld device

• Examples of Use Cases –

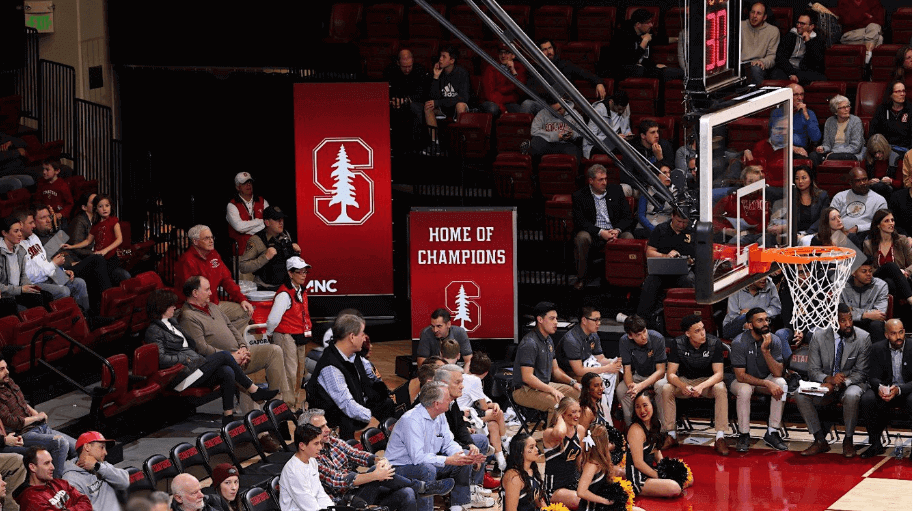

  Sports: Game Watching Parties, Campus Events, Sponsor Events, Media Backdrops, Press Conferences
  Places: Corporate Lobbies, Retail Entrances, Step & Repeats, Sponsor Events, Corporate Meetings, Country Clubs, Real Estate
  Events: Event Hall Spaces, Sponsor Events, Step & Repeats, Press Conferences, Concert Venues, Corporate Meetings, Watch Parties & Tailgates

• Spec Sheet
